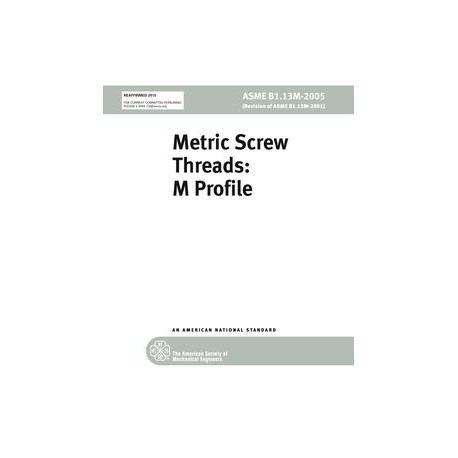

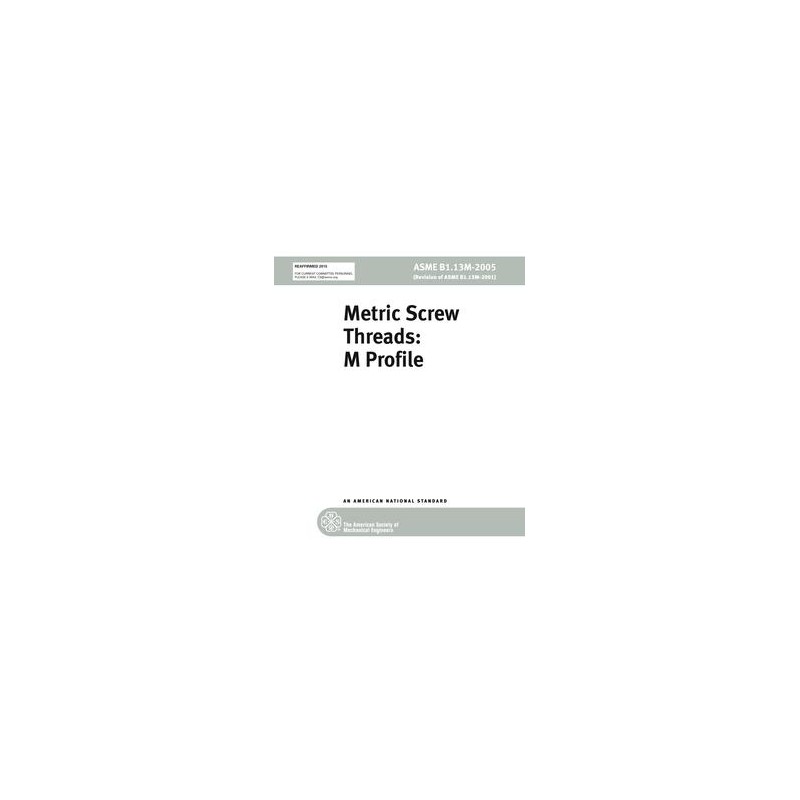

ASME B1.13M-2005 (R2020) Metric Screw Threads: M Profile

standard by ASME International, 03/10/2006

More details

In stock

$72.00

More info

Full Description

This Standard contains general metric standards fora 60 deg symmetrical screw thread with a basic ISO 68-1profile designated M profile. The M profile threads oftolerance class 6H/6g are intended for metric applicationswhere inch class 2A/2B have been used. At theminimum material limits, the 6H/6g results in a looserfit than the 2A/2B. Tabular data is also provided for atighter tolerance fit external thread of class 4g6g, whichis approximately equivalent to the inch class 3A but withan allowance applied. Formulation and tolerancing datais included for applications requiring other fits.
